Semi-automatic Powder Coating Line

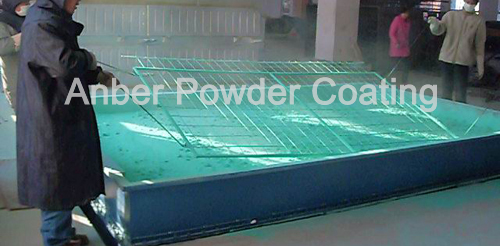

Semi automatic mesh sheet powder coating line

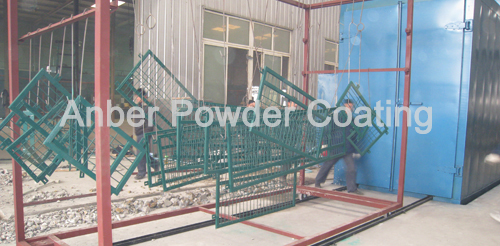

Manual mesh sheet powder coating line

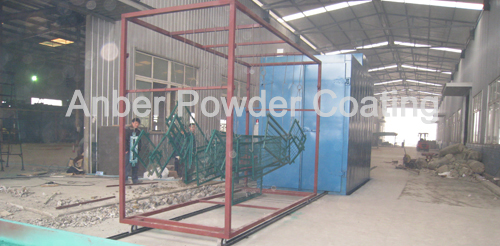

Semi automatic powder coating line for mesh sheet
Semi automatic mesh sheet powder coating line
Manual mesh sheet powder coating line
Semi automatic powder coating line for mesh sheet
Application: Apply powder coatings on welded wire mesh sheets
Max. size of roll mesh: Length 4000mm × Width 2500mm
Heating source: Fuel
Average power consumption: about 15KW/h
Fuel consumption: 18-25kg/h
Factory Building: ≥ Length 30000mm × Width 10000mm × Height 5000mm
Process flow of semi-automatic powder coating line:
Manual loading → Preheating furnace → Fluidized bed for powder application → Powder curing furnace to melt the plastic powder into a smooth layer → Natural cooling for the coated mesh → Manual unloading → Manual shape correction → Quality control → Final package
Equipment List:
Preheating furnace, curing furnace, powder coating equipment, conveying cart & track, control cabinet
