Steel tube & pipe powder coating line

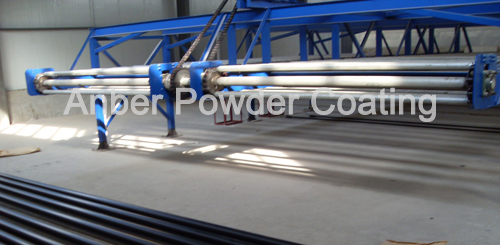

  • Steel tube powder coating line

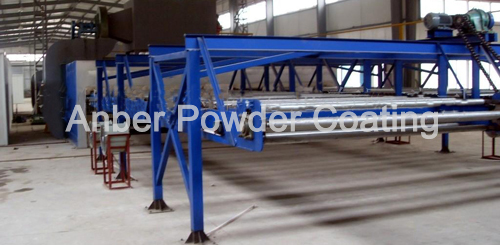

  • Steel pipe powder coating line

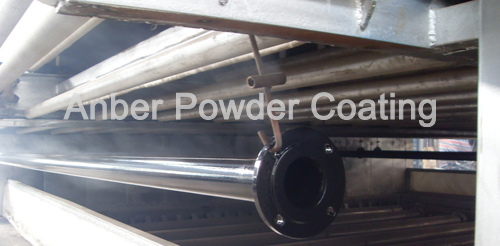

  • Fluidized bed powder coating line for tube & pipe

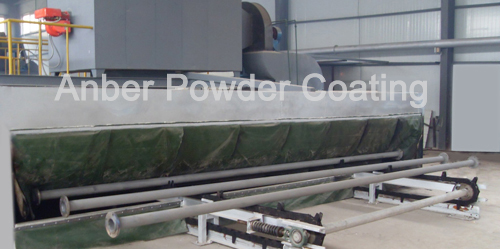

  • Anti-corrosion powder coating line for pipe & tube

  • PVC coated tubes

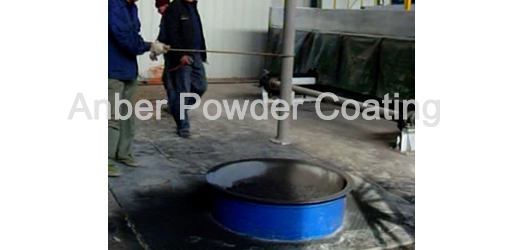

  • Pipe & tube before powder dip-coating line

Description of pipe / tube PVC coating line:
This Powder Coating Line is used to provide an anti-corrosive surface treatment for steel tubes & pipes, transportation tubes, Iron transportation tube, Steel transportation tube, underground pipeline, Natural gas tubes and so on.
Process flow of fluidized bed coating line:
Manual feeding - Pre-heating - Auto powder immersion - Curing - Coated workpiece cooling - Manual discharging - Manual shaping correction - Quality control - Final package

Composition of a complete anti corrosion pipe coating line:
(1) Auto eletrical pre-heating & curing furnace;
(2) Auto coating powder up-and-down device, vibration generator, fluidized bed;
(3) Hanging delivery system, special hanger for workpiece;
(4) Power supply control equipment, auto program control.

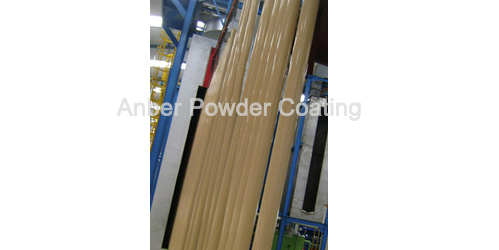

Powder coated steel pipes & tubes:

Powder coated tubes & pipes Powder coated tubes
